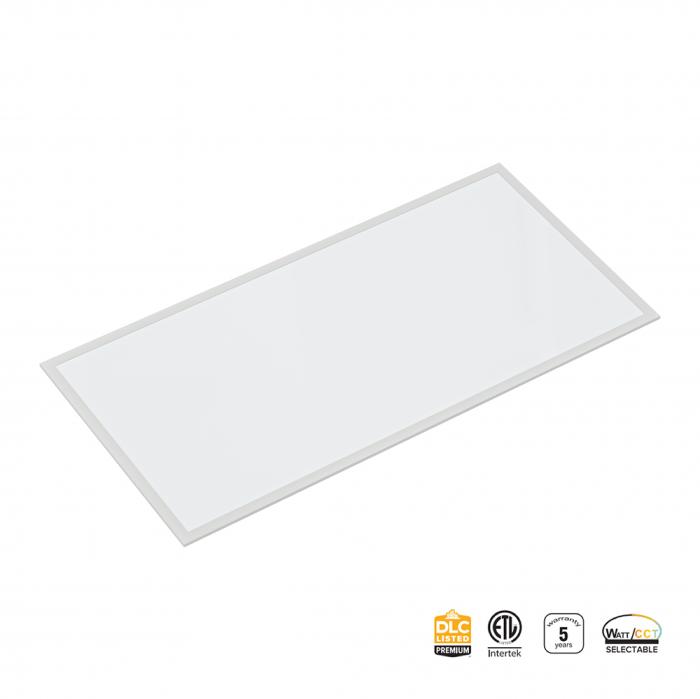

2X4 72W Highbay LED Panel Light 10000LM For Offices Schools

2X4 72W Highbay LED Panel Light 10000LM For Offices Schools
Name:2X4 72W Highbay LED Panel Light 10000LM For Offices Schools
Model:CS-PLB24-72W-CCT
Wattage:72W
Voltage:AC120-277V/120-347V
Lumen:10000LM
CCT:3000K/3500K/4000K/5000K/5700/6500K

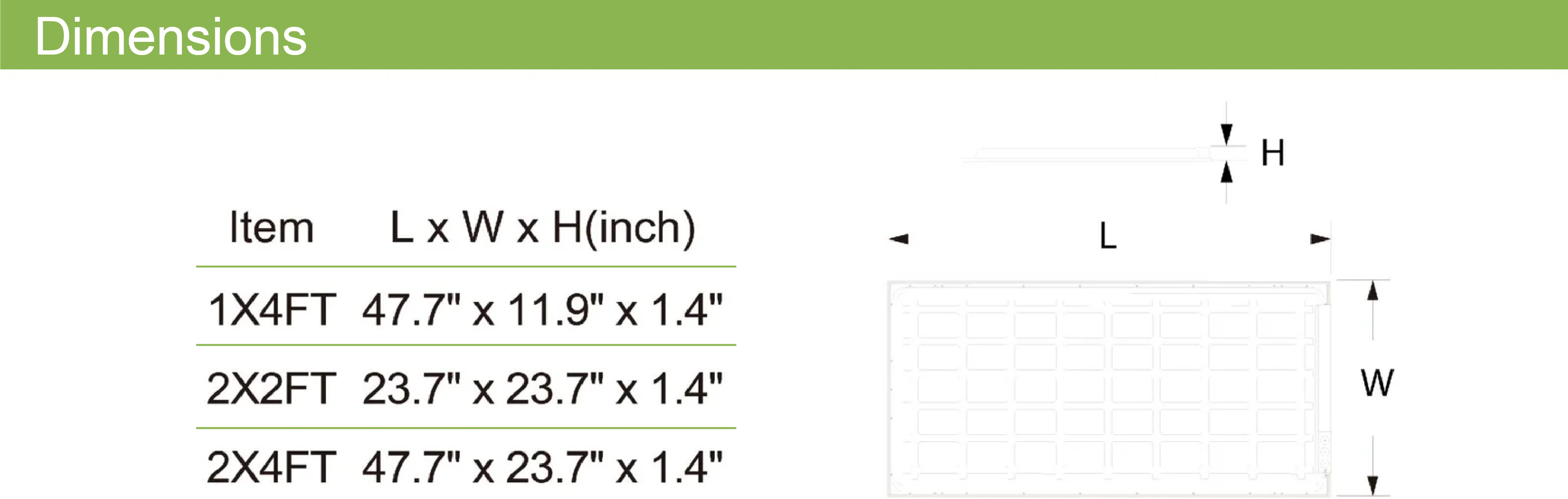

Length:2X4
DLC Application:High Bay & Low Bay Luminaires



  • Integrative aluminum frame provides a durability structure
  • 5 Wattage and 5 CCT selectable switches are integrated on the driver
  • Minimize Stock, 1SKU can cover Max. of 25 Models
  • Input Voltage: 120-277Vac 50/60Hz
  • 0-10V dimming THD≤20%, PF≥0.9

Model CS-PLB14-T40W-CCT CS-PLB22-T40W-CCT CS-PLB24-50W-CCT CS-PLB24-T72W-CCT
Power 15/20/25/30/40W 15/20/25/30/40W 50W 30/40/50/60/72W
Luminous Flux 5200LM 5200LM 6500LM 9360LM
CCT 3000/4000/5000K/5700K/6500K/
Selectable
Input Voltage AC120-277V/
AC120-347V
Working Temperature -30°C-+50°C
Additional Accessory: PIR sensor
Emergency drive
Application New construction or remodel
Office
school
healthcare
facilities
Institutions
commercial applications
Viewing Angle 120°

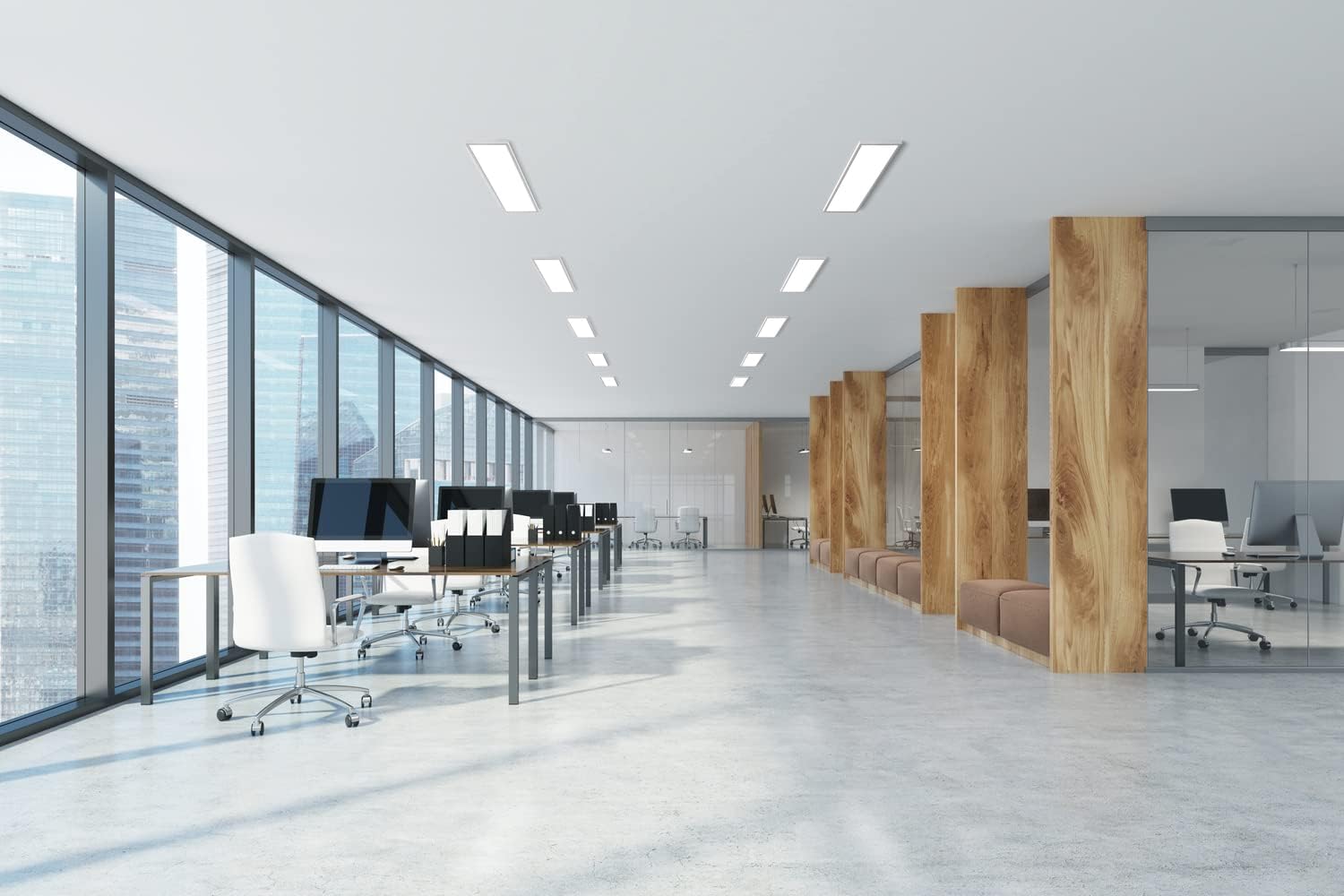

Offices: Provides bright, even lighting to boost productivity and comfort.

Schools: Ensures a well-lit, conducive learning environment.

Healthcare Facilities: Offers reliable, high-quality lighting necessary for medical settings.

Commercial Spaces: Suitable for a wide range of commercial applications, providing dependable and efficient lighting solutions.
