LED UFO High Bay light 60W 100W 150W 200W 240W 300W

Name:	LED UFO High Bay light 60W 100W 150W 200W 240W 300W
Input volatage:	100-277V/200-480V
Wattage:	60W/100W/150W/200W/240W/300W
Material:	AL+PC
Certificate:	DLC&UL
CCT:	3000K 4000K 5000K 6000K 6500K
Waterproof:	IP65
Light effect:	130lm/w

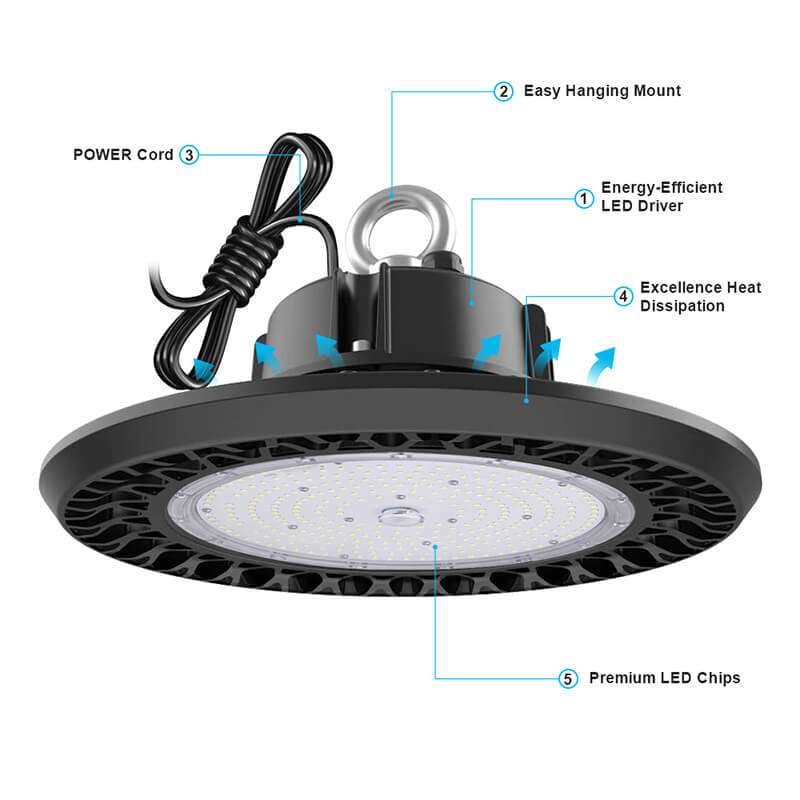

Product features
Data Sheet

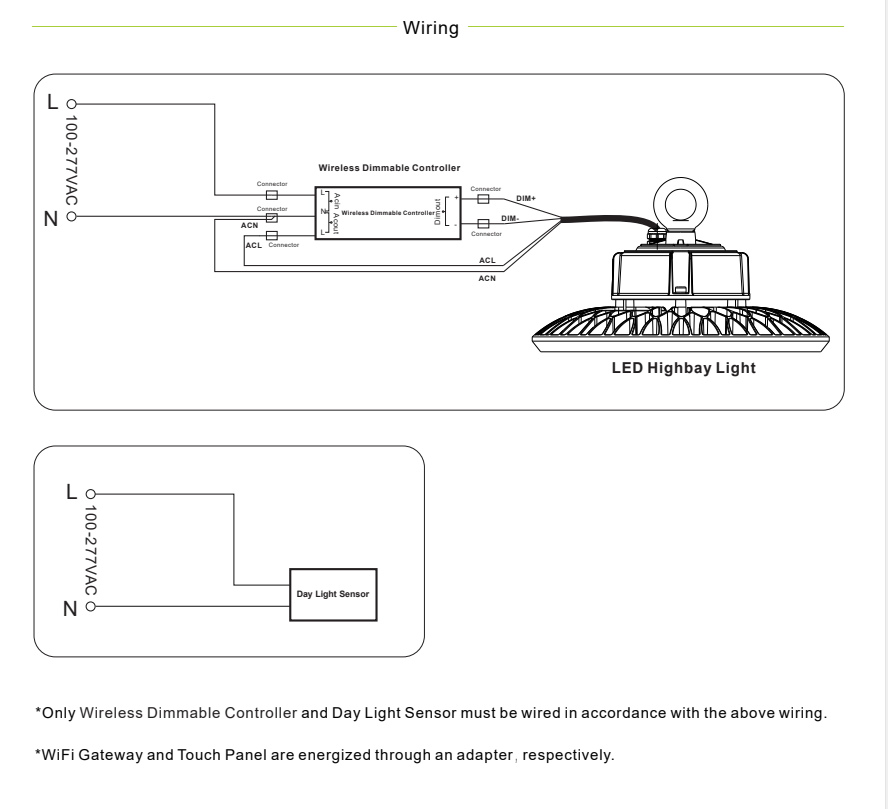

Installation
Application

1.Beam angle : 60 / 90 / 120 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It’s major to replace the conventiona high bay light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.

ower	60W/100W/150W/200W/240W/300W
Model	CS-UFOD200W
Luminous Flux	26000lm
Replacement	HPS 600W
ETL CE	Y
Model differences	Different installation accessories:E1-Ring mounting;E2-Bracket mounting
Light Source	SMD LED
Luminous Efficacy	130lm/W
Operation Temp	-40 to +45℃
CCT	2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW
CRI	70+
Life Span	50,000 hours at 25℃
Voltage	100-277VAC/50-60Hz 200-480VAC/50-60Hz Available
Driver	UL listed power supply
Driver	Available Dali dimming optional
Emergency module	Opthional,Emergency Driver A or B
Sensor	Microwave sensor available
Control System	APP, remote control, touch screen, light control and other control options available

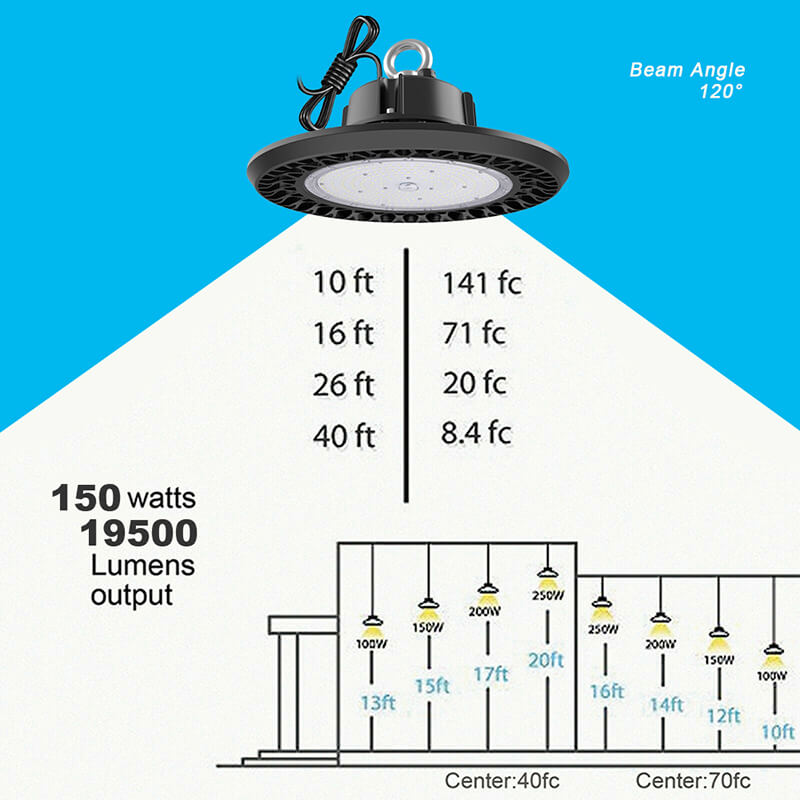

Beam Angle	120°(Transparent,Matte) 60°90°(Lens)
IP	IP65
PF	>0.95
Warranty	3/5 Years

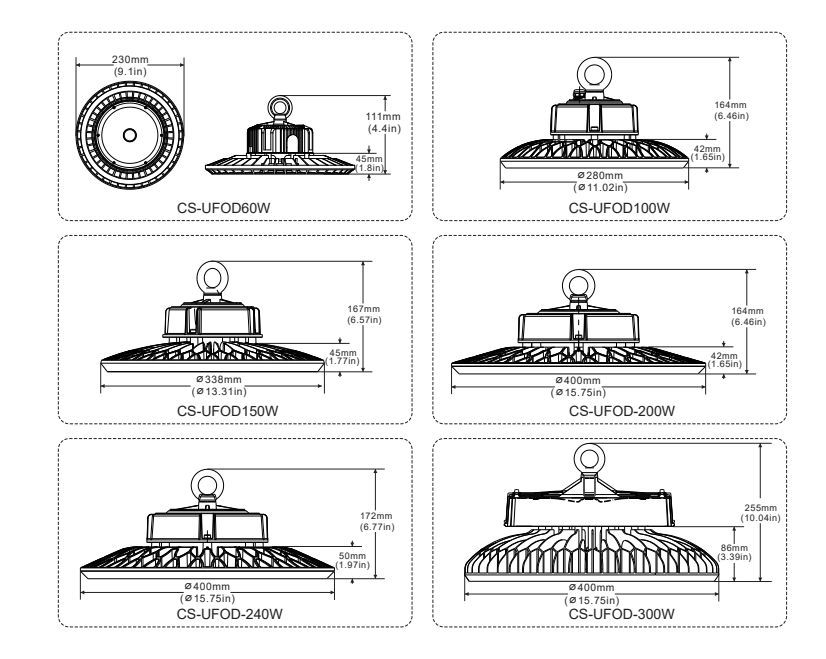

Dimensions:

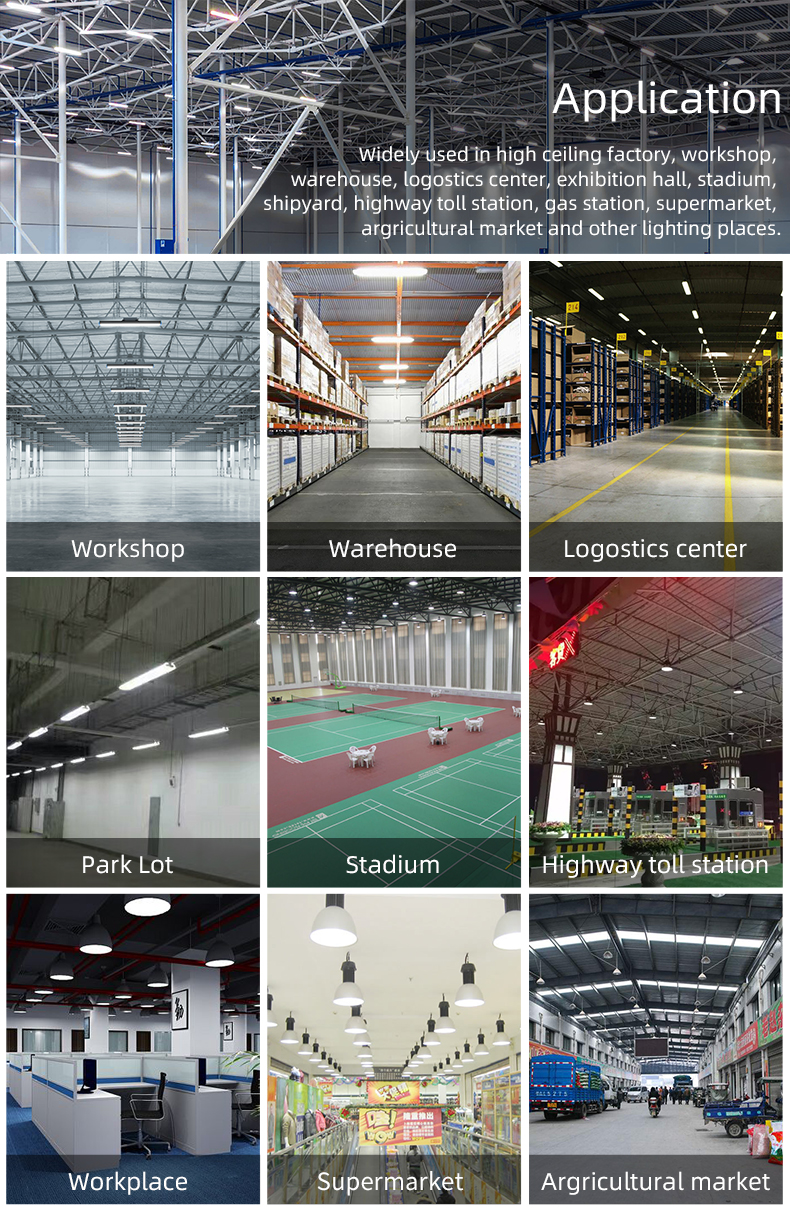

1.Parking area lighting;
2.Ceiling lighting;
3.Warehouse lighting;

4.High / low bay lighting.
