2x2 FT LED Center Basket Troffer (Watt& CCT Tunable）

2x2 FT LED Center Basket Troffer (Watt& CCT Tunable）

Name:	2x2 FT LED Center Basket Troffer (Watt& CCT Tunable）
Input volatage:	100-277V
Wattage:	25W/30W/35W
Material:	AL+PC
Certificate:	DLC&UL
CCT:	3000K 4000K 5000K 6000K 6500K
Dimensions:	2X2ft
Light effect:	125lm/w

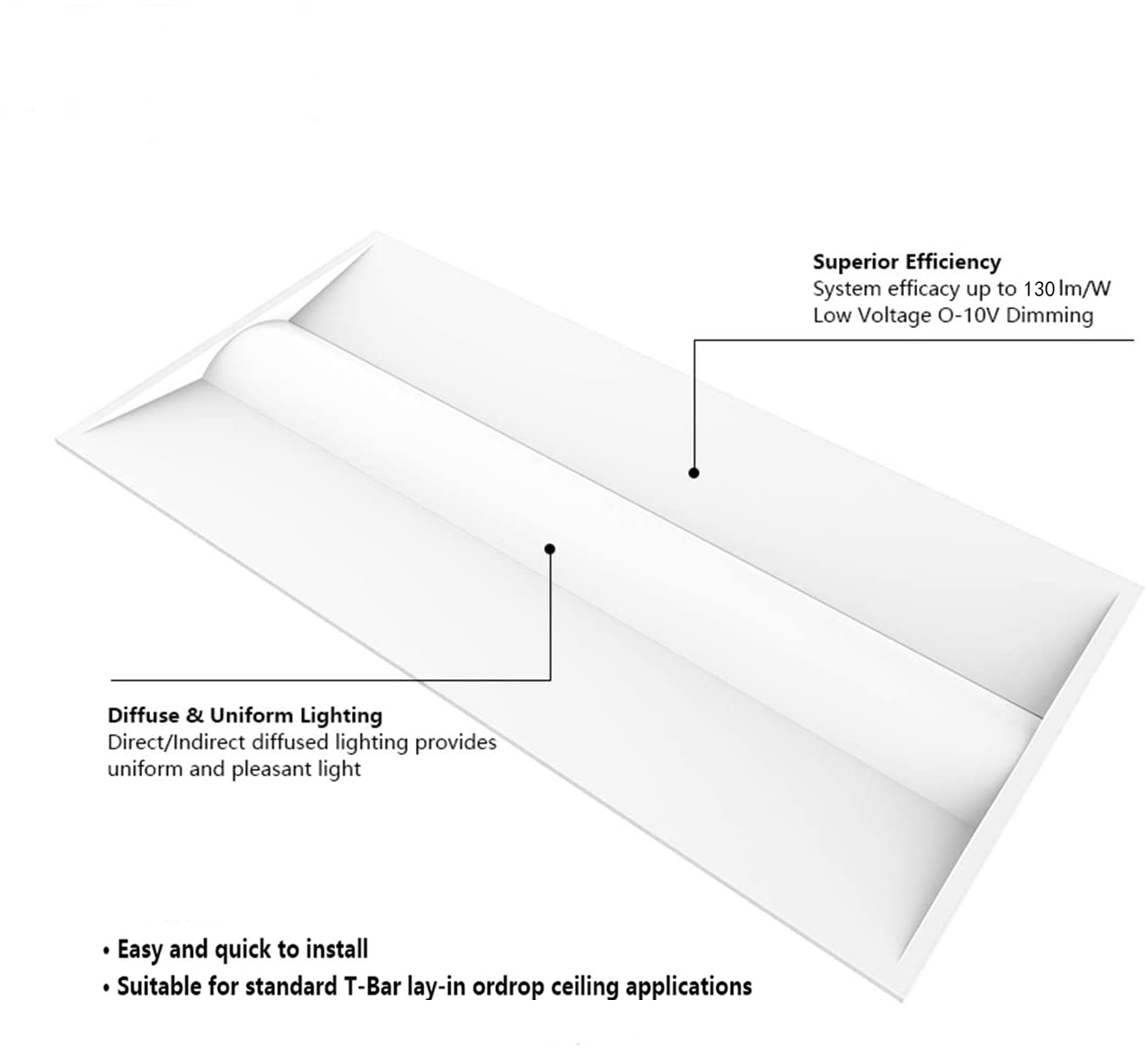

Product features
Data Sheet

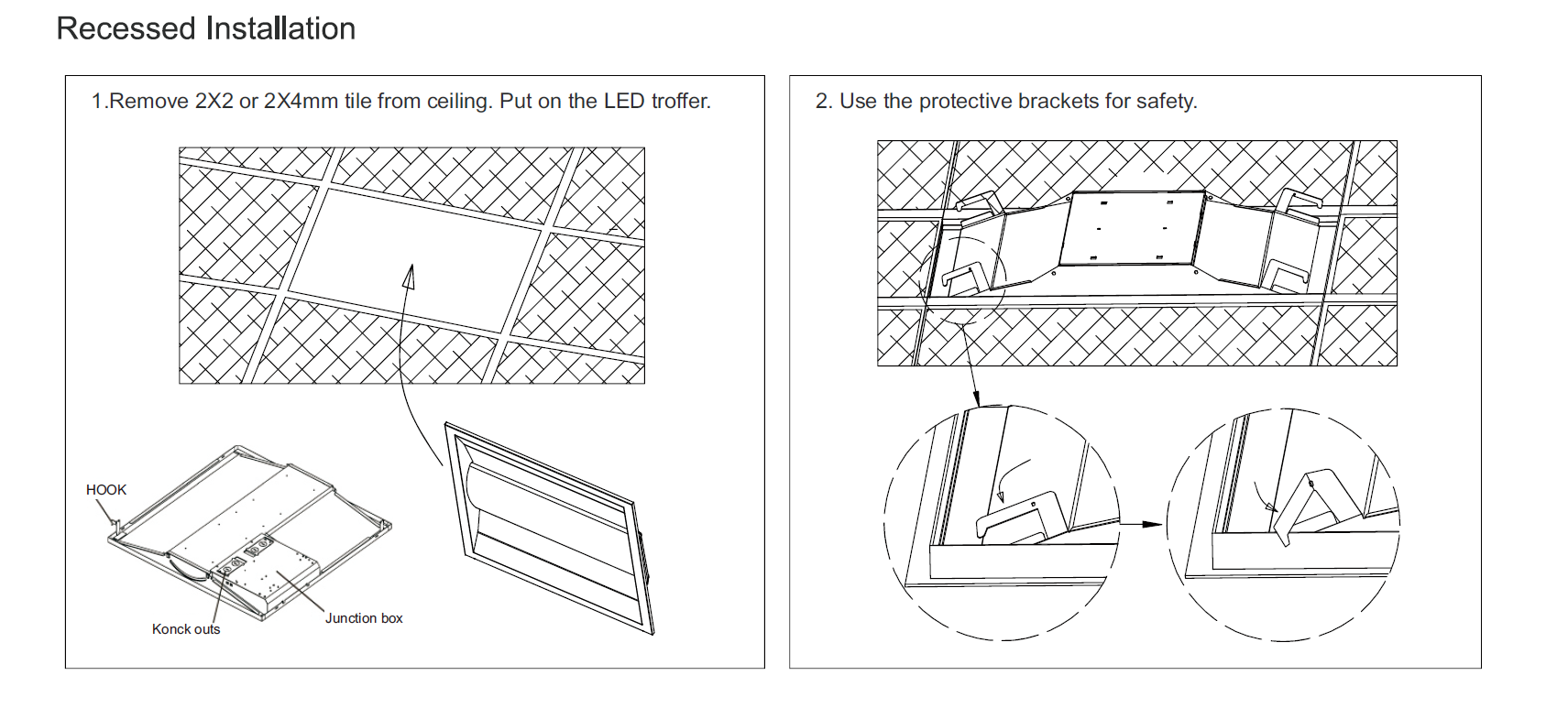

Installation
Application

High Quality 2835 LEDs and PC cover provide uniform and pleasant light
High Efficiency: System Efficacy up to 130lm/w
0-10V Dimming
Color Temperature and Wattage Changeable
Easy and Quick to install
Suitable for standard T Bar lay-in or drop ceiling application

Model	Wattage	Light effect	Luminous Flux	CCT	Certificate	Input Voltage	Dimmable	Ra	Warranty
CSTRL2225W	25W	125lm/w	3125lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years
CSTRL2230W	30W	125lm/w	3750lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years
CSTRL2235W	35W	125lm/w	4375lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years
CSTRL2440W	40W	125lm/w	5000lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years
CSTRL2445W	45W	125lm/w	5625lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years
CSTRL2450W	50W	125lm/w	6250lm	3500K 4000K 5000K	ETL&DLC(Premium 5.1)	AC100-277V	0-10V	>80	5 Years

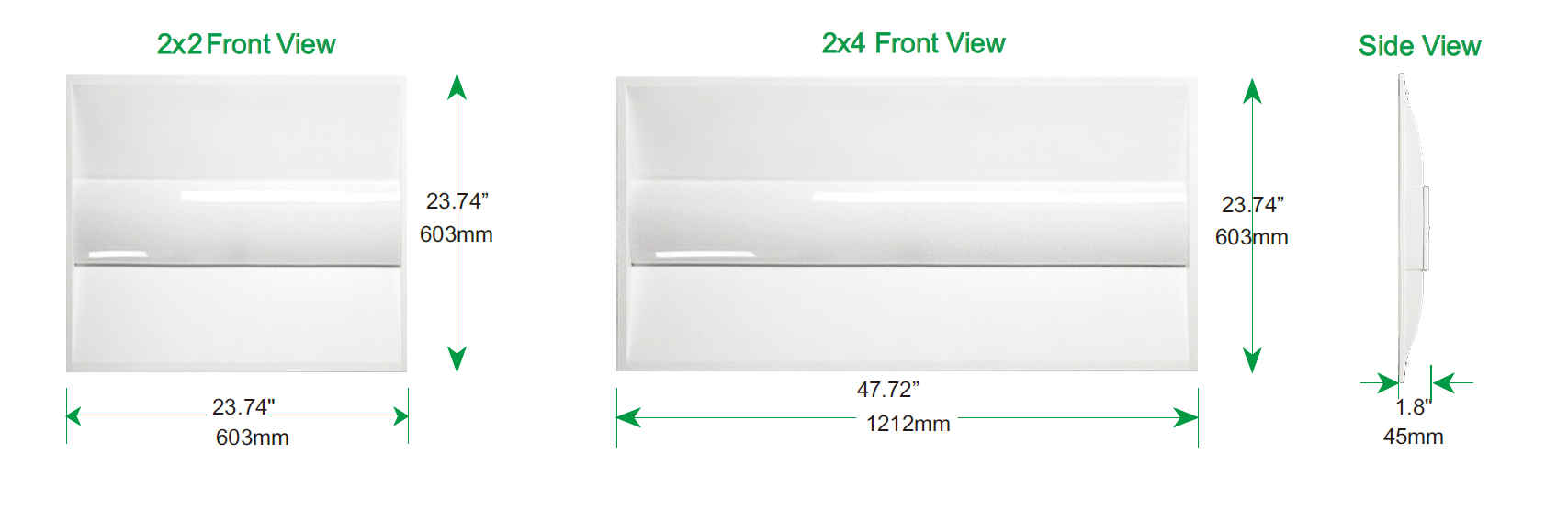

Dimensions：

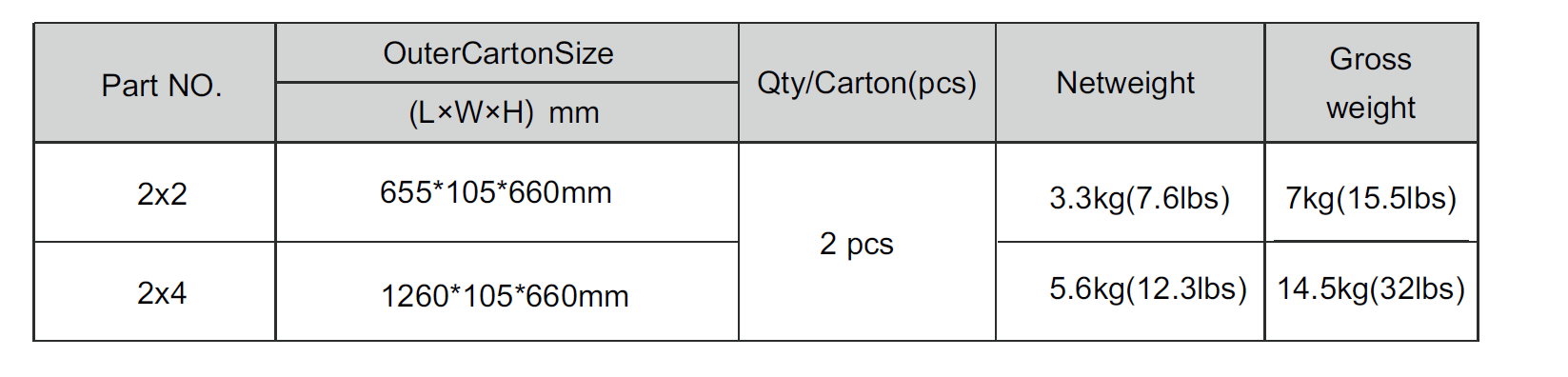

Package：

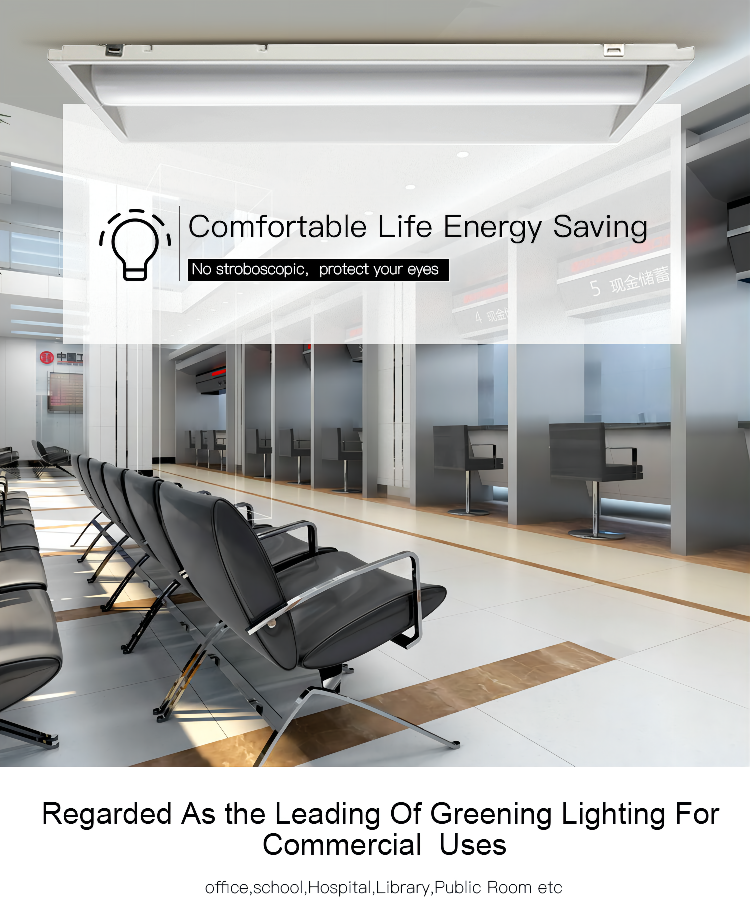

Schools/ hospitals/ office/ retails/ commercial.
