600600mm 130lm/W 36W led panel light

Name:600600mm 130lm/W 36W led panel light
  • Warranty: 3 years
  • Input Voltage: 200-240Vac  |  PF>0.9 | THD<20%
  • High efficiency, up to 130lm/W  RA:80
  • Panel is ideal for EMC energy-saving projects in places of work and educational locations, healthcare and retail environments.

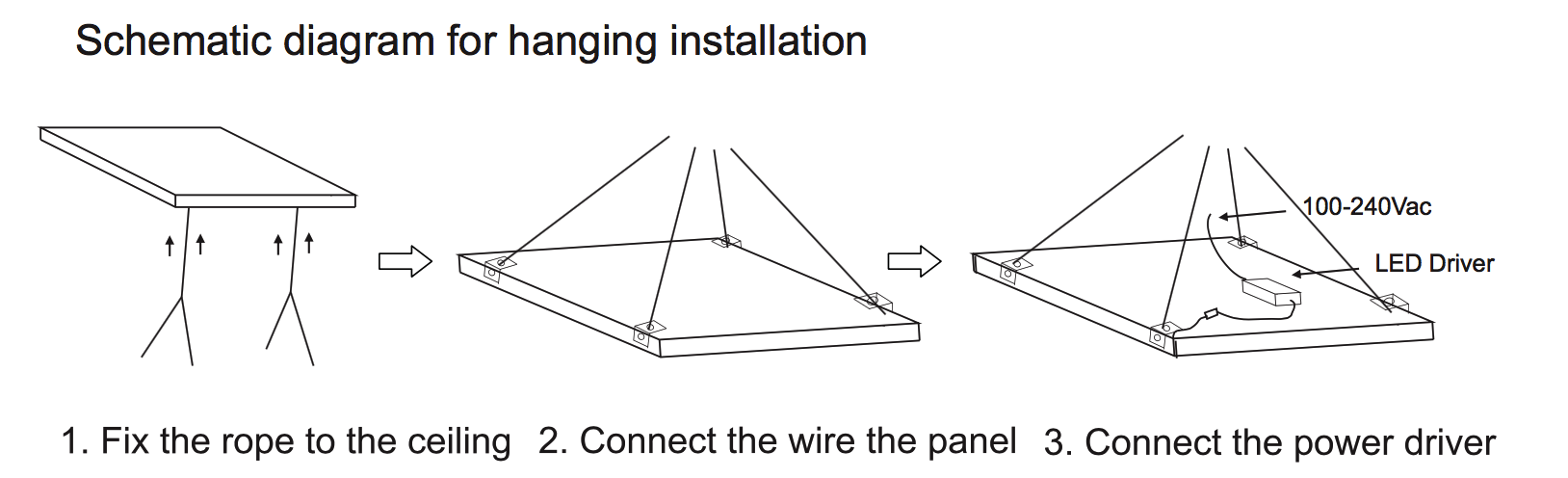

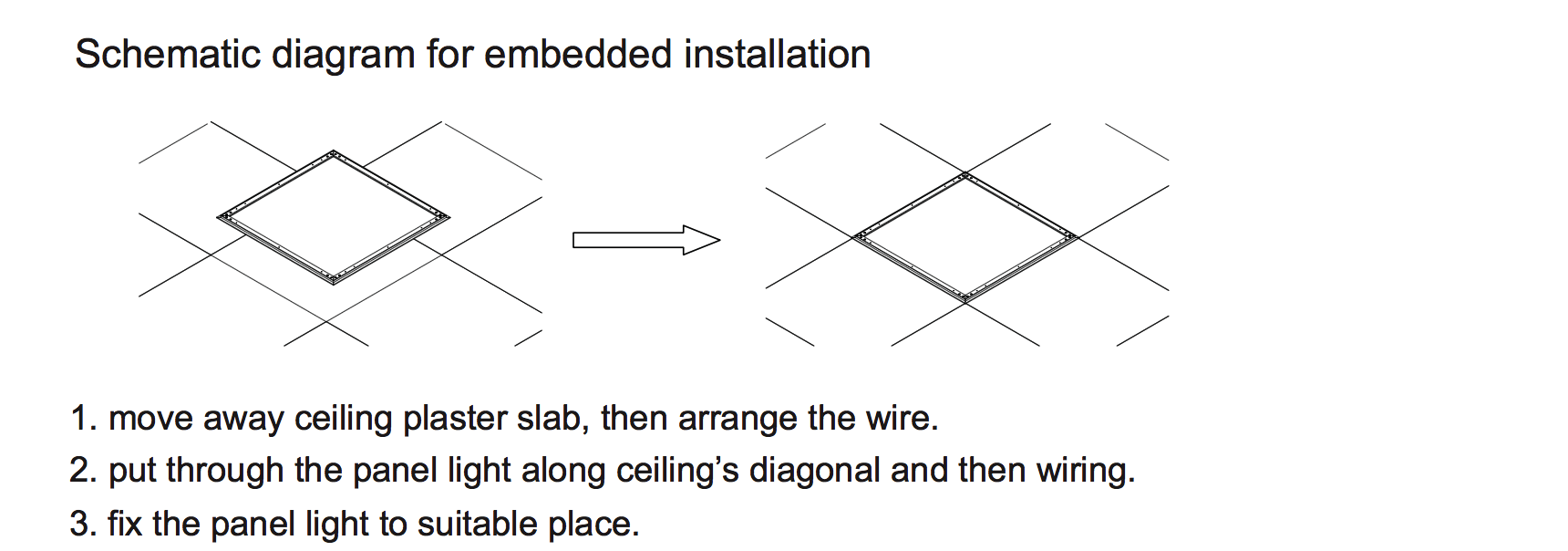

  • Surface  mounted / Grid ceiling reccessed installation

Optical Parameters

CCT

6000K/5000K

4000K

3000K

Lumen Output(lm)±5%

5200

5000

4800

Lumen Efficacy(LPS)±5%

130

125

120

LED Type/Qt'y

Lextar 22x35mil Chip / 196pcs

CRI/SDCM

>80/<6

Electrical Parameters

Rated Power(w)±5%

40

Rated/Actual Input Voltage

90-264Vac/100~240Vac  50/60Hz

Driver Output Data

25-38Vdc / 1000ma-1200ma / 36W-40W

Power Factor/THD/PE

>90%/<20/88%

Driver/Connection

Removable Driver / PIP

Over Load/Short Circuit

Protection

Surge/Protection Class IEC

>1KV / Class II

Hi-pot Test Range

SELV Isolated Driver, 3750Vdc/5mA/60S

Life

Warranty

5 years

Lumen Maintenance 70%

80,000hrs

LM80

>97.1% lumen maintance @ 6,000hrs

Others

Dimmable Solution

Dali/0~10V/PWM/Traic Optional

Frame Color RAL

Pure white/RAL9016

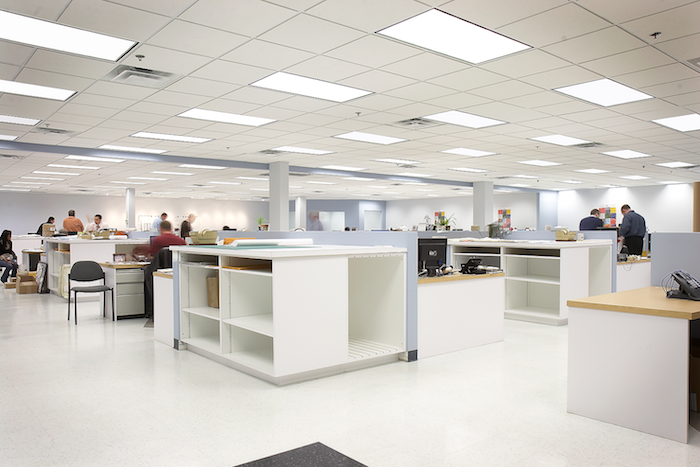

Office Lighting With Panel
